** At least a 4 inch front lift REQUIRED to clear Skeletonized Radius Arms **

Fitment:

2003-2013 RAM 2500 4WD - 4"-10" lift

2003-2012 RAM 3500 4WD - 4"-10" lift



Outlaw Fab's Skeletonized Radius Arms for the 2003-2013 RAM trucks provide a smoother ride and more control compared to the OEM or factory replacement short control arms. Full adjustment of pinion angle is achieved with the included adjustable Johhny Joints. These radius arms need 4" of front lift to clear the frame rails and work with a maximum of 10" of front lift. 4-6" of lift will require trimming or removal of the OEM bracket that usually connects the factory control arms to the frame.



FEATURES:

  • Each side uses (3) Johnny joints used to connect to the factory axle points as well as to connect the upper link to the main link. Johnny joints are greasable, rebuildable, and do not have metal on metal contact like heim joints. This provides a smoother ride as well as resistance to corrosion from road salt or other contaminants.
  • The Poly bushing connecting the main link to the frame bracket provides an extra cushion between you and the rough road. As opposed to using a heim joint with metal on metal contact, this feature will further dampen impacts caused by rough terrain.
  • Massive 3/4" diameter bolts replace the factory 16mm diameter bolts used to mount OEM control arms to the frame.
  •  Hassle free installation with no welding required to attach the frame brackets. Simply mark and drill six 1/2" holes to attach the frame brackets using the included grade 8 hardware.
  • Faceplates on both the inside and outside of each arm give it that attractive show truck look. Most companies cut corners by only put decorative plates on the outter facing side of their products, but we notice the details!



POWDER COAT:

We use the following color options, click on the color name to view samples of each color. We also have a section above to add any color off of PRISMATIC POWDERS website. Simply select "Custom Powder Color" as the powder coat option and type the name of the color you want or copy/paste the link where it says "Custom Powder Coat Color (if selected)"



PRISMATIC POWDERS USED:

RED - ASTATIC RED

BLUE - SAVANNAH BLUE

ORANGE - BRIGHT ORANGE

YELLOW - ELECTRIC YELLOW

GREEN - ELECTRIC GREEN

PURPLE - SINBAD PURPLE

GREY - CANNON GREY

SILVER - STEEL SILVER

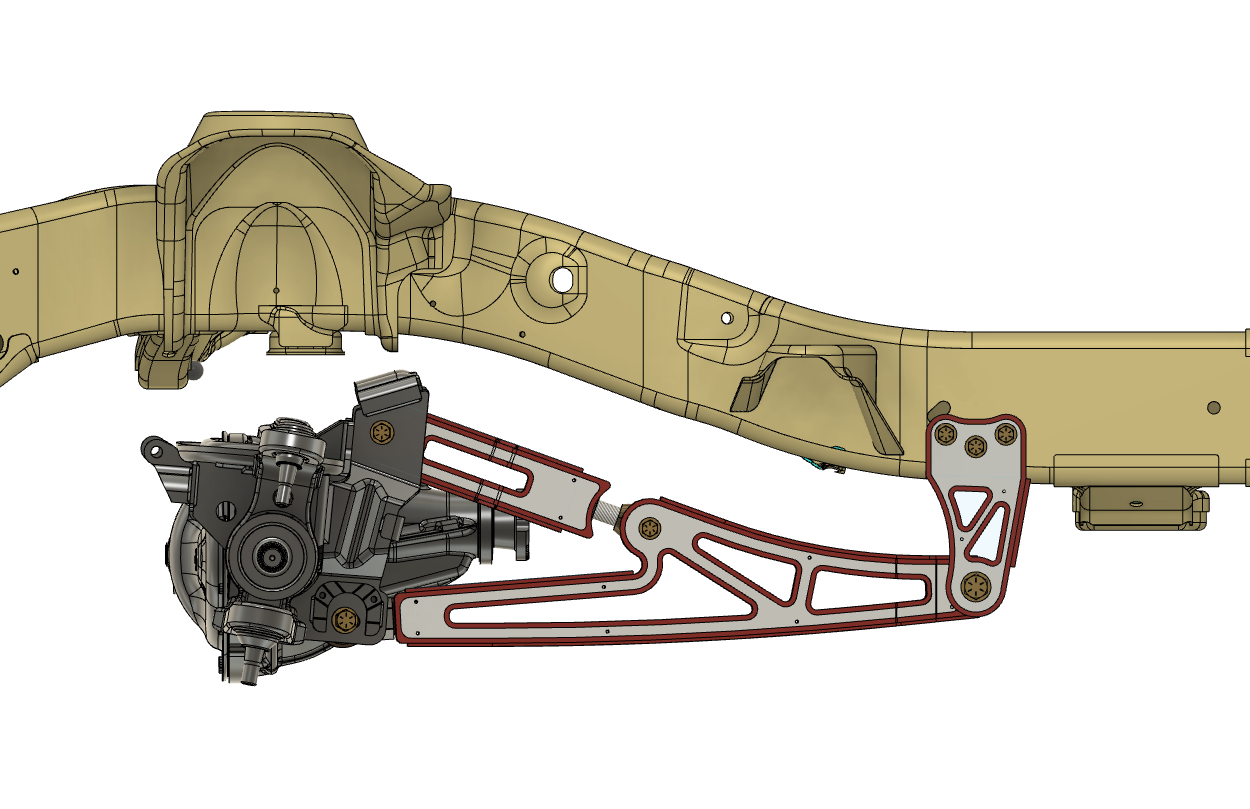

03-13 RAM 2500/3500 Skeletonized Radius Long Arms

$1,596.55Price

Disclaimer:

-Our products are made to order, and specifically to fit your vehicle and to match your options. For this reason ALL SALES ARE FINAL. Once the order is placed there is absolutely no refunds.

-Free shipping applies to lower 48 states ONLY - Contact us for shipping options to Alaska and Hawaii

*Lead times subject to change with or without notice*
